ExpoM-RF Station

ExpoM-RF based Long-term Monitoring System

Applications

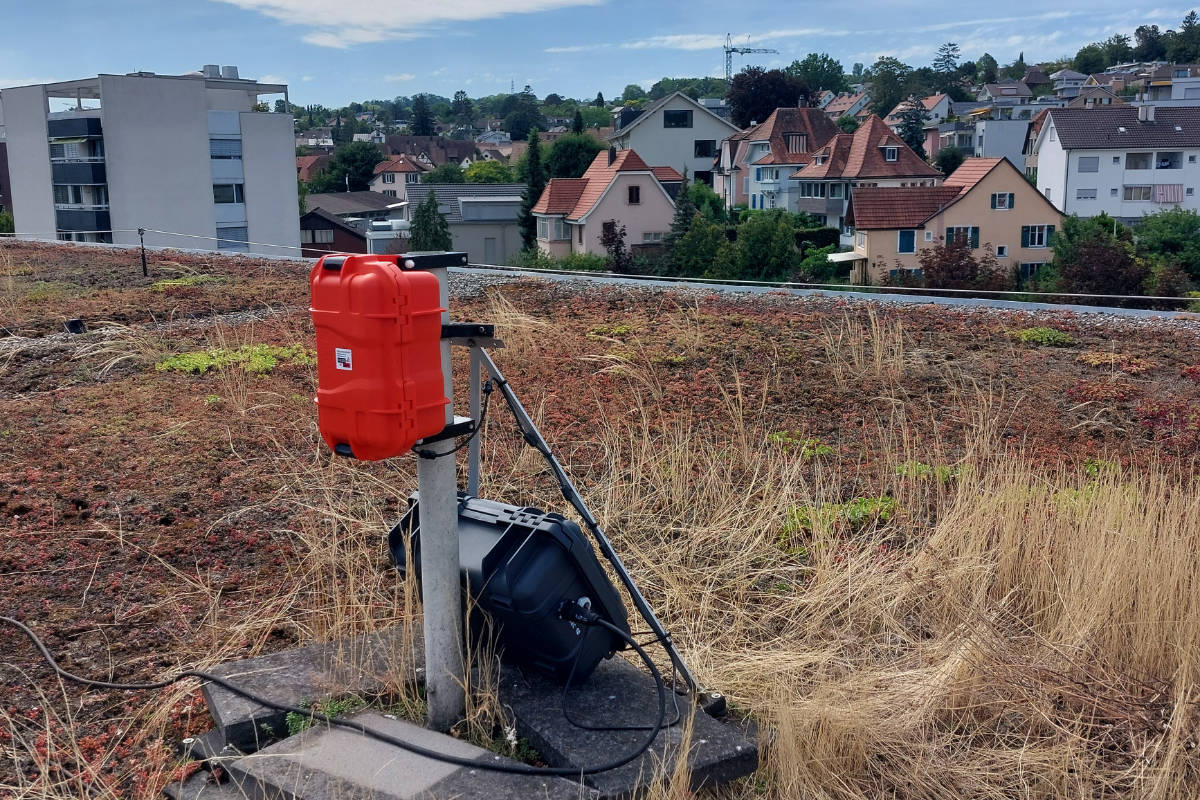

• Stationary long-term tracking of RF field strengths for monitoring applications (indoor & outdoor)
• Measuring and monitoring RF field strengths near fixed installations
• Observation of time trends (daily, weekly, seasonal, etc.)

Key Features and Options

• Modular version with existing ExpoM-RF device
• Compact version with integrated ExpoM-RF hardware and enhanced antenna configuration
• Gateway and database solution (storage of timeseries data)
• Connectivity via Ethernet, WiFi, Mobile network
• Database tailored to the needs of the customer and the specific configuration
• Customer defined data visualization

Different Use Cases

• Measurement campaign up to 48h: Internal akku & storage are sufficient
• Measurement campaign > 48h up to 1 month: Additional external akku connected via USB switch (load & transfer data), storage of data on NUC/via SBC to database on cloud
• Continuous monitoring setup: Fixed power connection, storage of data on NUC/via SBC to database on cloud

Different Configurations

ExpoM-RF in Case

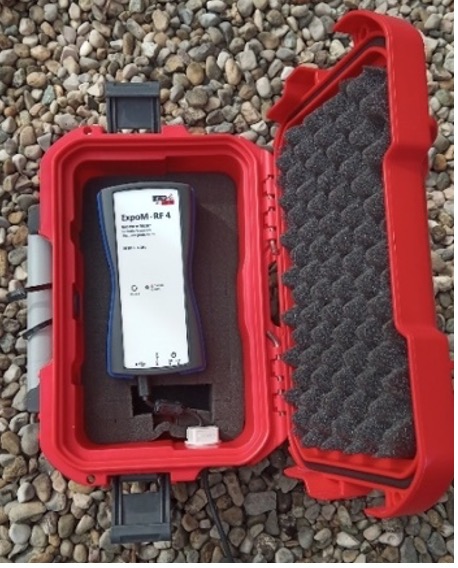

• ExpoM-RF device in weatherproof case
• ExpoM-RF hardware including an external antenna mounted within case together with control electronics

Connectivity

• NUC based data transfer via ExpoM-Utility (regular transfer of *.csv files to a server, i.e. via ftp)
• SBC based control including ExpoM-RF gateway (regular transfer of measurement data to a cloud-based database)
